Nano V3.0+ Board (3pcs)
- Plug-and-Play. Old chip CH340 is replaced by HT42B534-1 which doesn't need to install drivers and perfectly works with Windows 10, macOS, and Linux system. For Windows 7, please download the driver from ELEGOO website.
- On-board F/M pins header, which is convenient to use with breadboard and jumper wires, no soldering skills required.

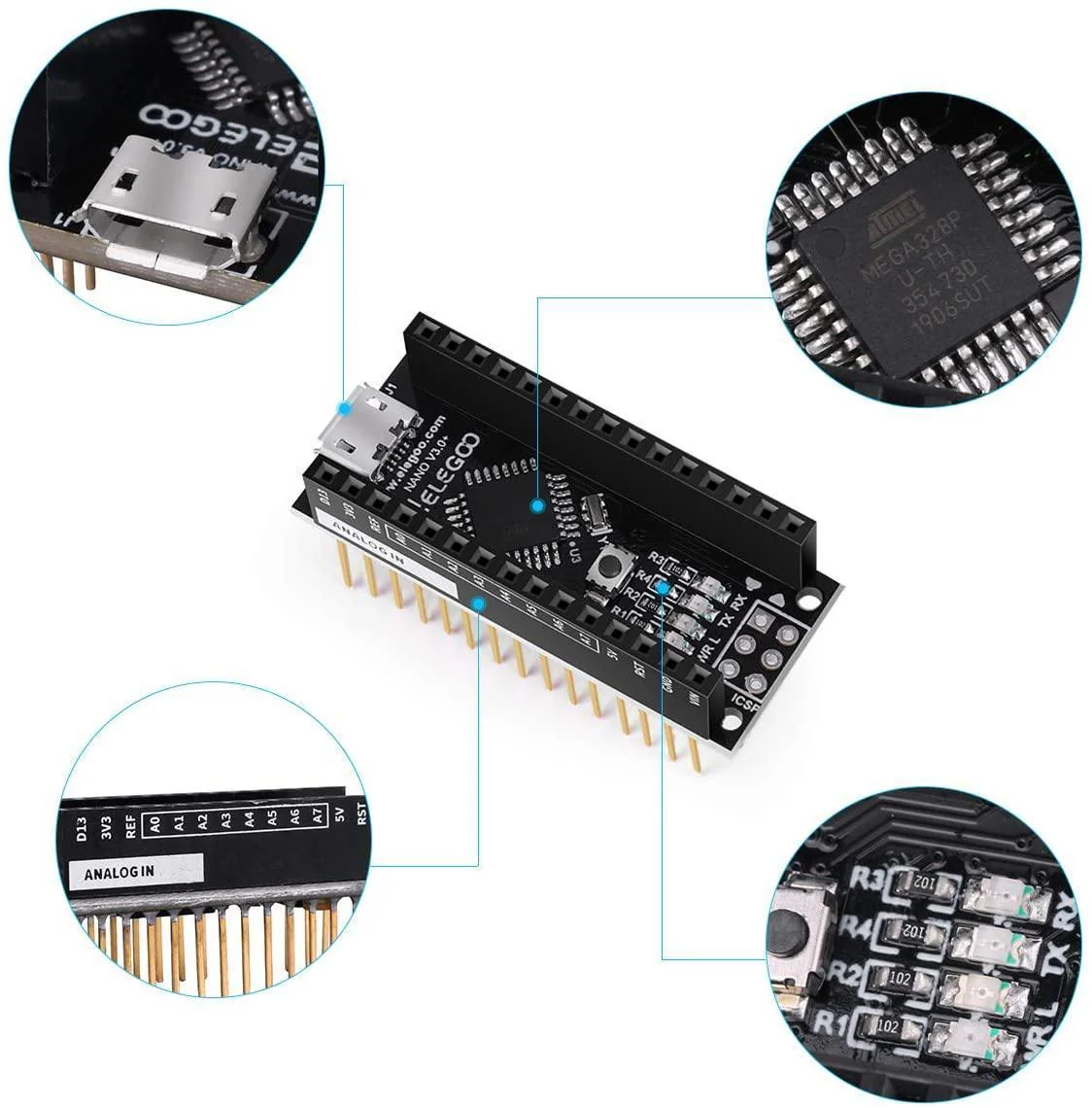

- Pin names are clearly printed on the female header connector, more precise and much easier to use the wires.

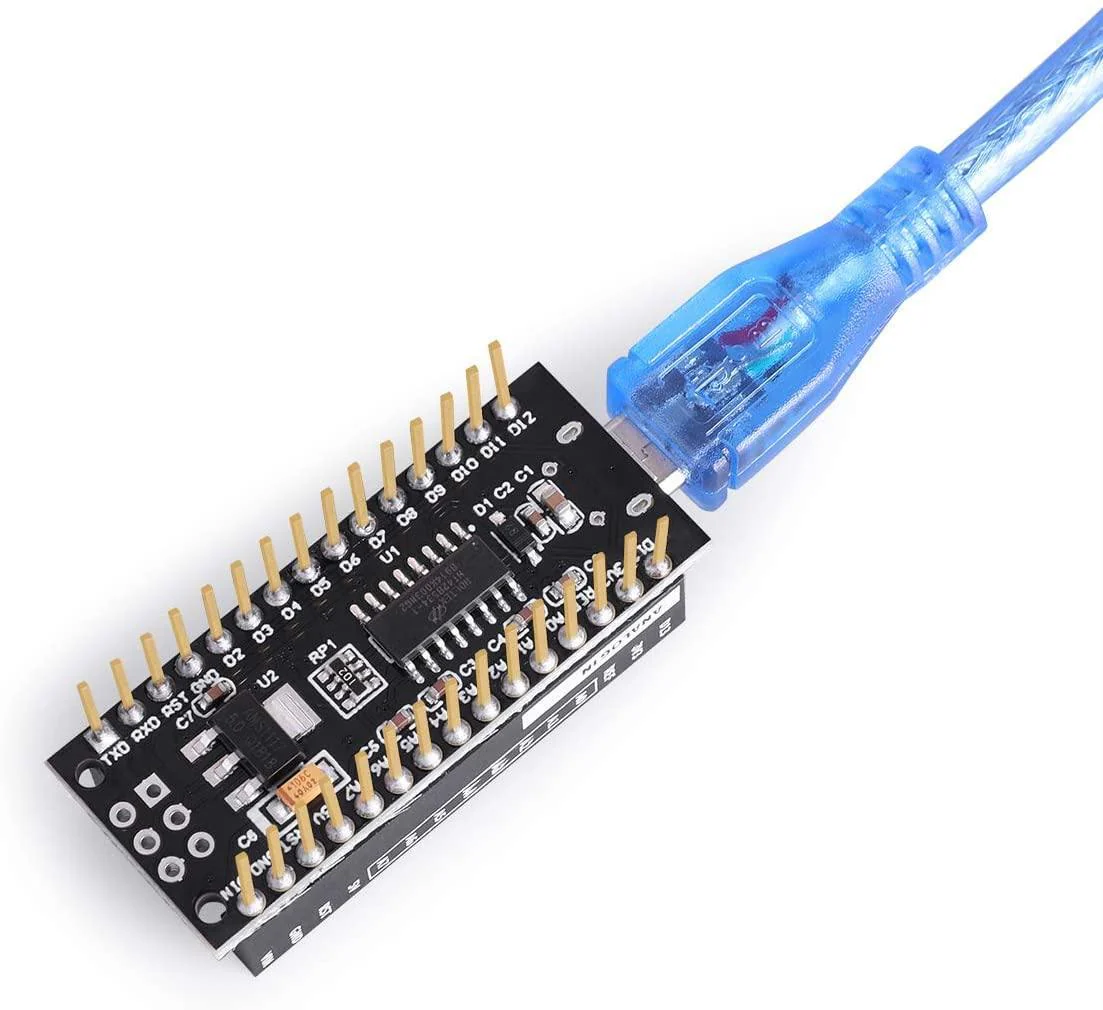

- Upgraded USB port, use the universal micro USB type-B instead of Mini-USB. Three USB cables are included in the package.

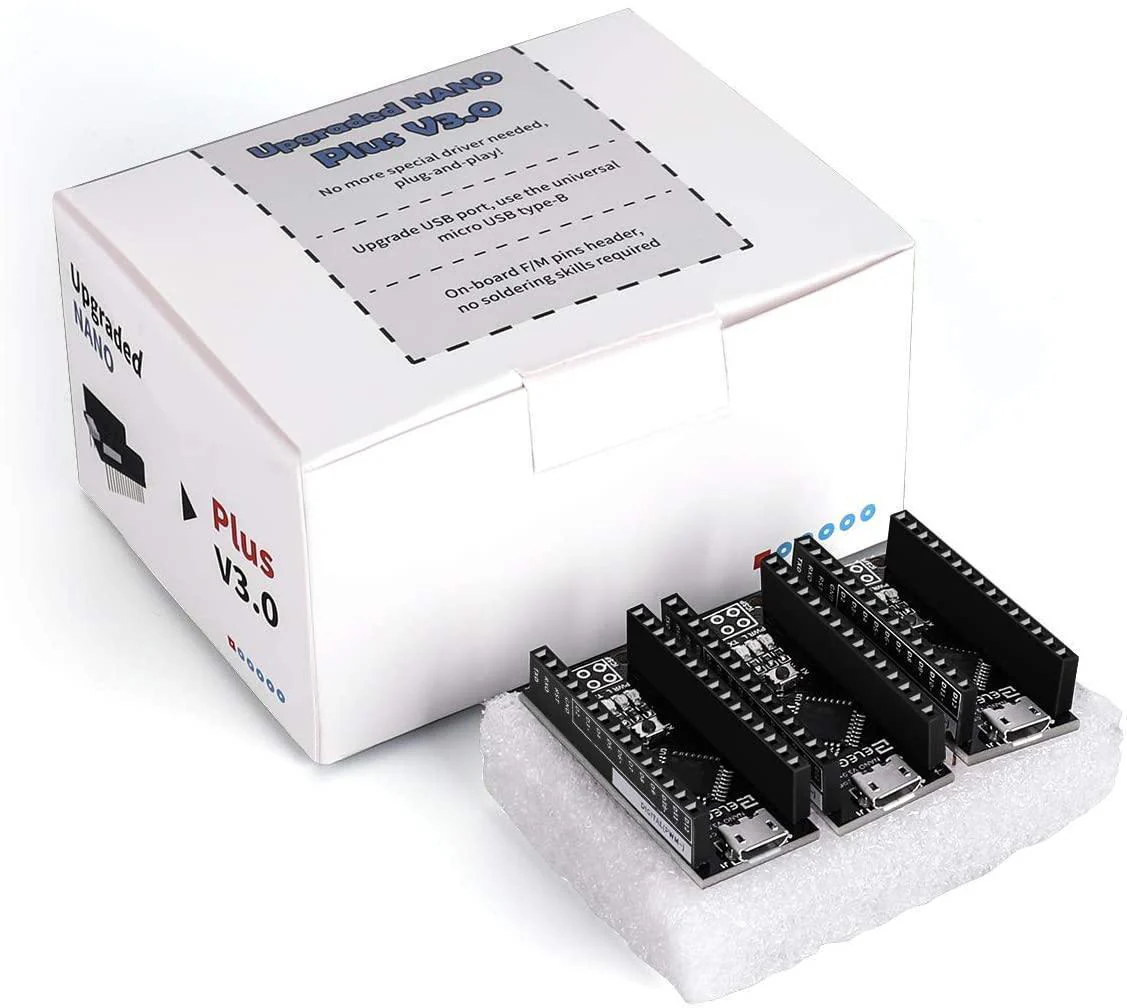

- All boards are well protected in anti-static bags and contained in the outer package together with the cables. We offer a 1-year quality guarantee so you can buy it with confidence.
Getting Started with the ELEGOO Nano 3.0
The ELEGOO Nano 3.0 is a small, complete, and breadboard-friendly board based on the ATmega328P; offers the same connectivity and specs of the UNO board in a smaller form factor.
Technical Parameters:
- Microcontroller：ATmega328
- Architecture：AVR；Operating Voltage：5 V
- Flash Memory：32 KB of which 2 KB used by bootloader；SRAM：2 KB
- Clock Speed： 16 MHz；Analog IN Pins：8；EEPROM：1 KB
- DC Current per I/O Pins：40 mA (I/O Pins)
- Input Voltage：7-9 V
- Digital I/O Pins：22 (6 of which are PWM)；PWM Output：6
- Power Consumption：20 mA
All boards are well protected in anti-static bags and contained in the outer package together with the cables.

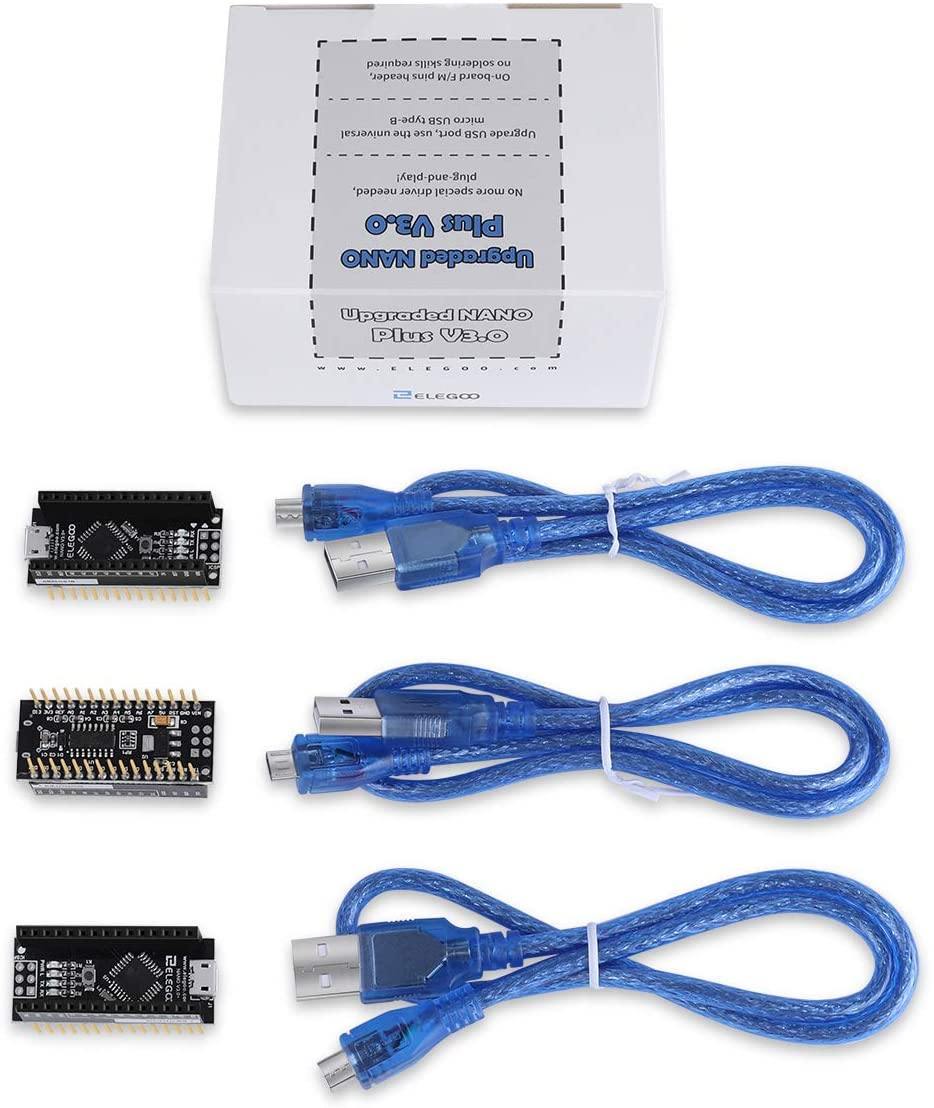

Package List:

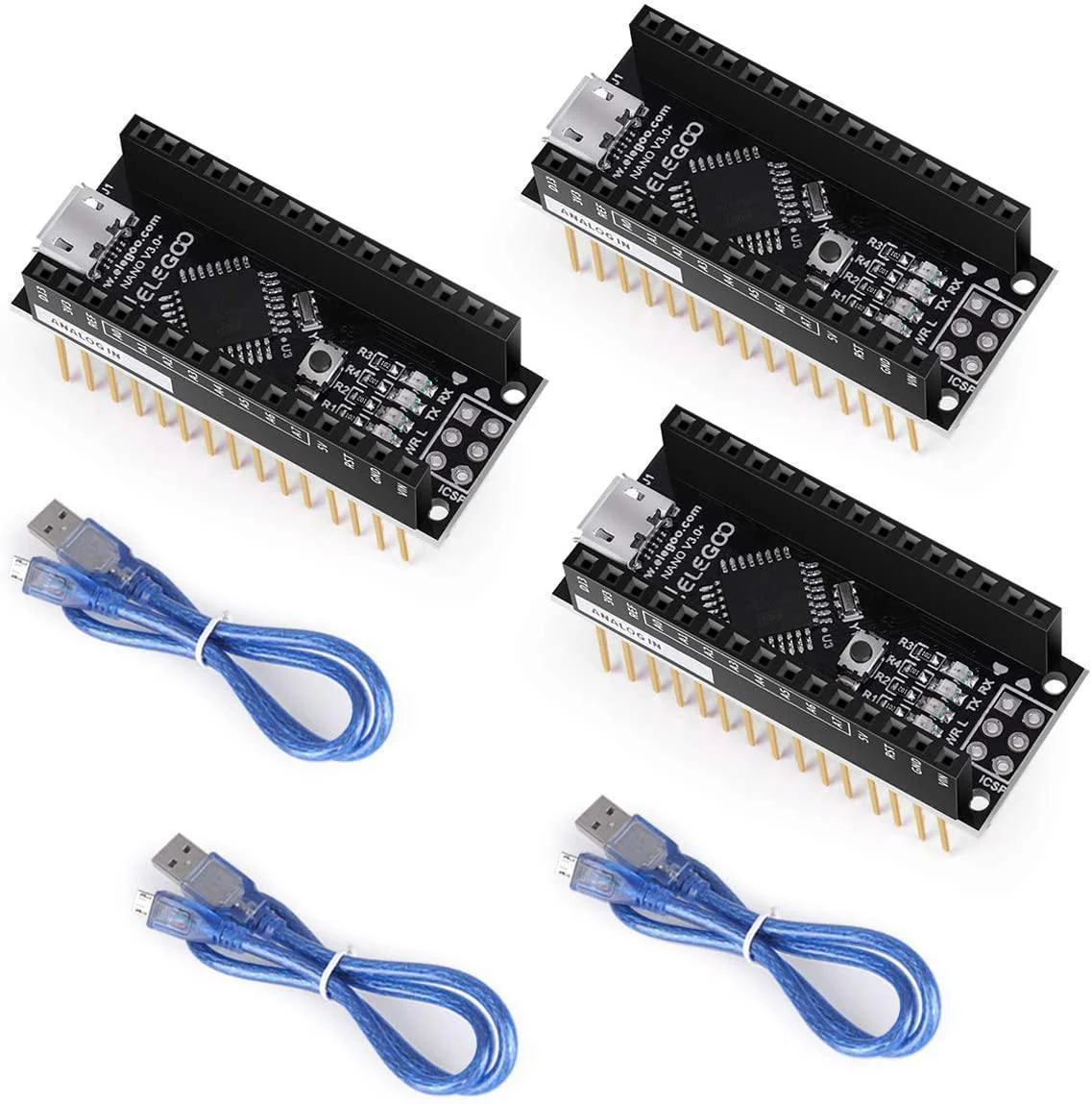

- 3 X Nano Board V3.0 PLUS
- 3 X USB Cable
|
|
|
|
|
|---|---|---|---|
|
Old chip CH340 is replaced by HT42B534-1 which doesn't need to install drivers and perfectly works with Windows 10, macOS and Linux systems. |
On-board F/M pins header, which is convenient to use with breadboard and jumper wires, no soldering skills required. |
Upgraded USB port, use the universal micro USB type-B instead of Mini-USB. Three USB cables are included in the package. |
Pin names are clearly printed on the female header connector, more precise and much easier to use the wires. |
